D71
|
X |
- |
6
|
Z Q C P R系列連接尺寸 |
|
10 |
|
J |
16 |
|
|

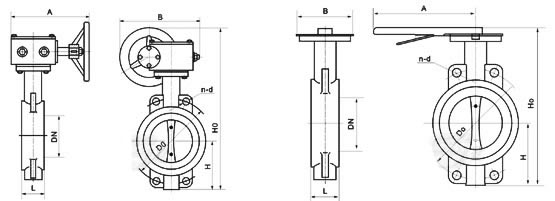

公稱通徑
|
結構長度(標準值)
|
外形尺寸(參考值)
|
連接尺寸(標準值)
|
|
0.6MPa
|
1.0MPa
|
1.6MPa
|
|
毫米
|
英寸
|
L
|
H
|
H0
|
A
|
B
|
D0
|
n-d
|
D0
|
n-d
|
D0
|
n-d
|
|
50
|
2
|
43
|
63
|
235
|
270
|
65
|
110
|
4-14
|
125
|
4-18
|
125
|
4-18
|
|
65
|
21/2
|
46
|
70
|
250
|
270
|
65
|
130
|
4-14
|
145
|
4-18
|
145
|
4-18
|
|
80
|
3
|
46
|
83
|
275
|
270
|
65
|
150
|
4-18
|
160
|
8-18
|
160
|
8-18
|
|
100
|
4
|
52
|
105
|
316
|
270
|
65
|
170
|
4-18
|
180
|
8-18
|
180
|
8-18
|
|
125
|
5
|
56
|
115
|
340
|
310
|
65
|
200
|
8-18
|
210
|
8-18
|
210
|
8-18
|
|
150
|
6
|
56
|
137
|
376
|
310
|
65
|
225
|
8-18
|
240
|
8-22
|
240
|
8-22
|
|
|
D371
|
X |
- |
6
|
Z Q C P R系列連接尺寸 |
|
10 |
|
J |
16 |
|
|
公稱通徑
|
結構長度(標準值)
|
外形尺寸(參考值)
|
連接尺寸(標準值)
|
|
0.6MPa
|
1.0MPa
|
1.6MPa
|
|
毫米
|
英寸
|
L
|
H
|
H0
|
A
|
B
|
D0
|
n-d
|
D0
|
n-d
|
D0
|
n-d
|
|
50
|
2
|
43
|
63
|
306
|
180
|
200
|
110
|
4-14
|
125
|
4-18
|
125
|
4-18
|
|
65
|
21/2
|
46
|
70
|
321
|
180
|
200
|
130
|
4-14
|
145
|
4-18
|
145
|
4-18
|
|
80
|
3
|
46
|
83
|
346
|
180
|
200
|
150
|
4-18
|
160
|
8-18
|
160
|
8-18
|
|
100
|
4
|
52
|
105
|
387
|
180
|
200
|
170
|
4-18
|
180
|
8-18
|
180
|
8-18
|
|
125
|
5
|
56
|
115
|
411
|
180
|
200
|
200
|
8-18
|
210
|
8-18
|
210
|
8-18
|
|
150
|
6
|
56
|
137
|
447
|
270
|
280
|
225
|
8-18
|
240
|
8-22
|
240
|
8-22
|
|
200
|
8
|
60
|
164
|
572
|
270
|
280
|
280
|
8-18
|
295
|
8-22
|
295
|
12-22
|
|
250
|
10
|
68
|
206
|
646
|
270
|
280
|
335
|
12-18
|
350
|
12-22
|
355
|
12-26
|
|
300
|
12
|
78
|
230
|
738
|
380
|
420
|
395
|
12-22
|
400
|
12-22
|
410
|
12-26
|
|
350
|
14
|
78
|
248
|
761
|
380
|
420
|
445
|
12-22
|
460
|
16-22
|
470
|
16-26
|
|
400
|
16
|
102
|
289
|
877
|
450
|
470
|
495
|
16-22
|
515
|
16-26
|
525
|
16-30
|
|
450
|
18
|
114
|
320
|
938
|
480
|
490
|
550
|
16-22
|
565
|
20-26
|
585
|
20-30
|
|
500
|
20
|
127
|
343
|
993
|
480
|
490
|
600
|
20-22
|
620
|
20-26
|
650
|
20-33
|
|
600
|
24
|
154
|
413
|
1131
|
480
|
490
|
705
|
20-26
|
725
|
20-30
|
770
|
20-36
|
|
700
|
28
|
165
|
478
|
1476
|
640
|
660
|
810
|
24-26
|
840
|
24-30
|
840
|
24-36
|
|
800
|
32
|
190
|
525
|
1533
|
640
|
660
|
920
|
24-30
|
950
|
24-33
|
950
|
24-39
|
|
900
|
36
|
203
|
585
|
1655
|
750
|
860
|
1020
|
24-30
|
1050
|
28-33
|
1050
|
28-39
|
|
1000
|
40
|
216
|
640
|
1765
|
850
|
900
|
1120
|
28-30
|
1160
|
28-36
|
1170
|
28-42
|
|
1200
|
48
|
254
|
755
|
1995
|
850
|
900
|
1340
|
32-33
|
1380
|
32-39
|
1390
|
32-48
|
|
1400
|
56
|
279
|
910
|
2310
|
1000
|
925
|
1560
|
36-36
|
1590
|
36-42
|
1590
|
36-48
|
|
1600
|
64
|
318
|
1030
|
2595
|
1000
|
925
|
1760
|
40-36
|
1820
|
40-48
|
1820
|
40-56
|
|
1800
|
72
|
356
|
1140
|
2810
|
1100
|
980
|
1970
|
44-39
|
2020
|
44-48
|
2020
|
4-56
|
|
2000
|
80
|
406
|
1250
|
3100
|
1100
|
980
|
2180
|
48-42
|
2230
|
48-48
|
2230
|
48-62
|
|
|
注:若用戶需用閥板襯橡膠等特殊要求,訂貨時請注明。 |
